Install front intake pipe
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
- Replace O-rings.
Parts: O-rings

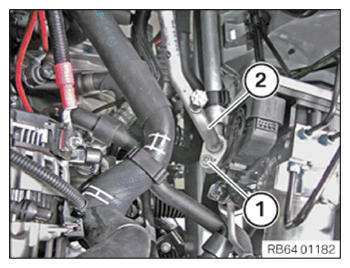

- Feed in and correctly position the intake pipe (2).
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Refrigerant line to connecting piece | ||
| M8 | Tightening torque | 19 Nm |

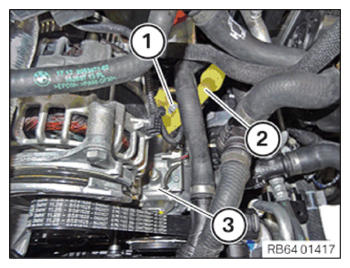

- Install the intake pipe (2) at the air conditioning compressor (3).
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Refrigerant line on air conditioning compressor | ||
| M8 | tightening torque | 19 Nm |

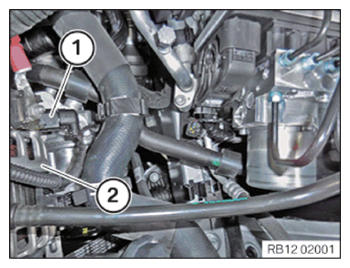

- Unlock and disconnect the connector (1) on the alternator (2).
Follow-up work
- Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
- Refer to INSTALLING THE CONTROL UNIT HOLDER .
- Refer to PARTIALLY INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to INSTALLING THE DME CONTROL UNIT .
- Refer to INSTALLING THE COVER FOR THE DME CONTROL UNIT .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to EVACUATING AND CHARGING CONDITIONING .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
