When replacing intake camshaft: Remount camshaft sensor wheel
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

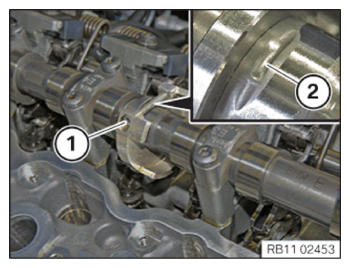

- Rotate intake camshaft, if necessary in the position shown up to the recess (2) .
- Loosen screw (1)
.

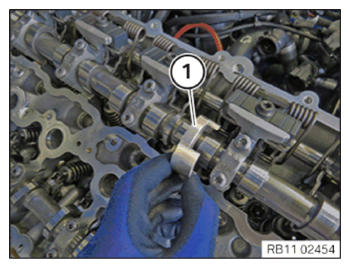

- Guide out and remove the camshaft sensor wheel (1)
.
- Guide the camshaft sensor wheel (1)
into the new intake camshaft.
- Rotate intake camshaft, if necessary in the position shown.
NOTE:
The recess (2) must point up.
- Position camshaft sensor wheel and tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Camshaft sensor wheel to intake camshaft | ||
|---|---|---|
| M4 x 35 | Tightening Torque | 4.5 Nm |
