Remove the test gauges for securing the camshafts
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

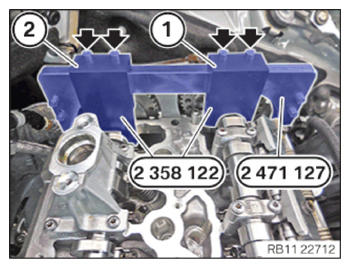

- Remove screws (arrows).
- Feed test gauge (1) out of the set of special tools 2 358 122 between the intake camshaft and basic carrier of the set of special tools 2 471 127 and remove.
- Feed test gauge (2) out of the set of special tools 2 358 122 between the exhaust camshaft and basic carrier of the set of special tools 2 471 127 and remove.
