Installing the VANOS central valve of the intake adjuster
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

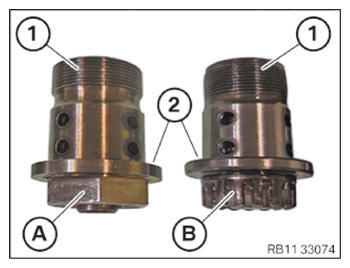

- Equipment specification A with the thread M22:
Coat the VANOS central valve (A) on the thread (1) with fresh engine oil.
- Coat the VANOS central valve (A) on the contact surface (2) with fresh engine oil.
- Equipment specification B with the thread M21:
Coat the VANOS central valve (B) on the thread (1) with fresh engine oil.
- Coat the VANOS central valve (B)
on the contact surface (2)
with fresh
engine oil.

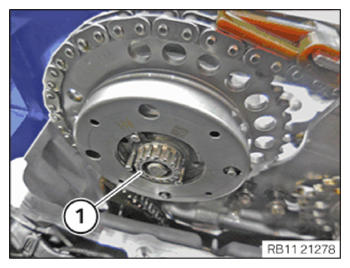

- Guide in and install the VANOS central valve (1)
of the intake adjuster.

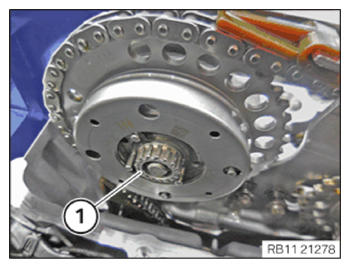

- Tighten the VANOS central valve (1)
of the intake adjuster hand-tight.

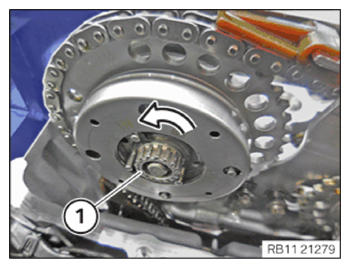

- Release the VANOS central valve (1) of the intake adjuster 60° in the direction of the arrow .
