Installing the VANOS central valve of the exhaust camshaft adjuster
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

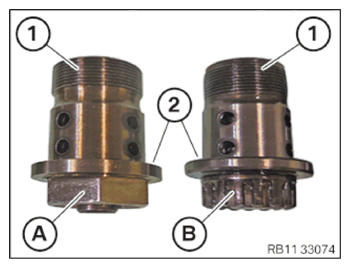

- Version A with the thread M22:
Wet the VANOS central valve (A) at the thread (1) with fresh engine oil.
- Wet the VANOS central valve (A) on the contact surface (2) with fresh engine oil.
- Version B with the thread M21:
Wet the VANOS central valve (B) at the thread (1) with fresh engine oil.
- Wet the VANOS central valve (B)
on the contact surface (2)
with fresh
engine oil.

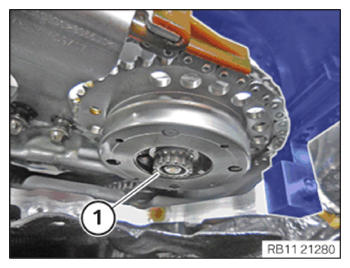

- Feed in and install the VANOS central valve (1)
of the exhaust camshaft adjuster.
- Hand-tighten the VANOS central valve (1)
of the exhaust camshaft adjuster.
- Release the VANOS central valve (1) of the exhaust camshaft adjuster in the direction of the arrow by 60°.
