NOTE:

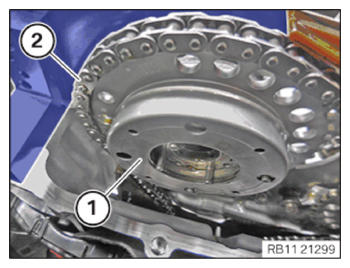

The figure shows the rear of the engine.
Pull out and remove intake adjuster (1)
from the timing chain (2)
.
