Releasing VANOS central valve of the exhaust camshaft adjuster
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

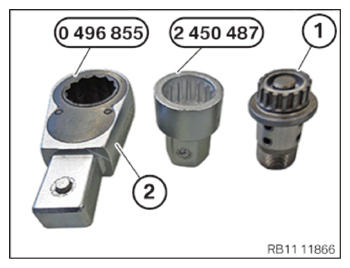

- To release the VANOS central valve (1)
, use reversible ratchet (2)
from special tool 0 496 855
with special tool 2 450 487
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

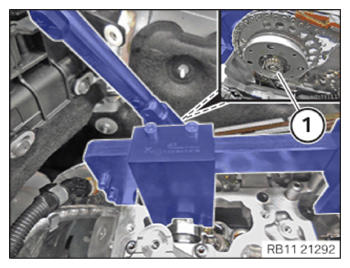

NOTE:
The figure shows the rear of the engine.
- Release the VANOS central valve (1)
of the exhaust camshaft adjuster.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
