Remove charge air temperature sensor
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
When the engine is stopped after the completion of trip, it may be necessary to run the electric fan. In rare cases, operation of the electric fan can last up to 11 min. This protects the components. In this case, replacing the electric fan will not remedy the problem!
When the engine is stopped after the completion of trip, it may be necessary to run the electric fan. In rare cases, operation of the electric fan can last up to 11 min. This protects the components. In this case, replacing the electric fan will not remedy the problem!
Preliminary work
- Refer to REMOVING THE FRONT SPOILER .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE LEFT AND RIGHT FRONT UNDERSHIELD .
- Refer to REMOVING THRUST FIELD .
- Refer to REMOVING THE RIGHT HAND FRONT BOTTOM SIDE COVER .
- Refer to REMOVING THE FRONT-END STRUT .
- Refer to REMOVING THE LEFT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
- Refer to REMOVING THE CLEAN AIR PIPE FOR CYLINDERS 1 TO 3 .
- Refer to REMOVING SEAL FOR FRONT HOOD .
- Refer to REMOVING THE COVER FOR THE CENTER ENGINE COMPARTMENT .
- Refer to REMOVING UPPER CROSS CONNECTION .
- Refer to REMOVING THE REAR TOP CROSS CONNECTION .
- Refer to REMOVING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
- Refer to DRAINING THE COOLANT FOR THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to REMOVING THE FAN COWL .
- Refer to REMOVING THE CHARGE AIR DUCT FOR CYLINDERS 1-3 .
- Refer to REMOVING THE CHARGE AIR DUCT FOR CYLINDERS 4-6 .
- Refer to REMOVING THE CHARGE AIR CROSSING .
NOTE:
RISK OF DAMAGE
Electrostatic discharge .
Damage to or destruction of electrical components .
Electrostatic discharge .
Damage to or destruction of electrical components .
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: 61 35... NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION .

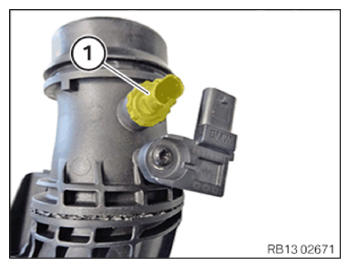

- Release the charge-air temperature sensor (1) with the special tool 0 496 142 (11 8 850) .
- Pull out the charge-air temperature sensor (1) and remove it.
