Notes on removing and installing Low Profile band clamps (M4 2021-2023)

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

31 5 200
2 413 949

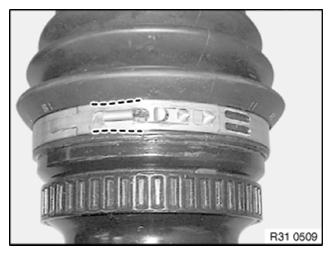

IMPORTANT: During removal Low Profile band clamp (dotted line) is overstretched and must not be reused!

G15332084

Courtesy of BMW OF NORTH AMERICA, INC.

Depending on the design of the Low Profile band clamps, a different special tool (pliers) is needed for installation.

Identify band clamp and find required special tool.

Band clamp type A = pliers 31 5 200

Band clamp type B = pliers 2 413 949

G15332085

Courtesy of BMW OF NORTH AMERICA, INC.

Installation (type A):

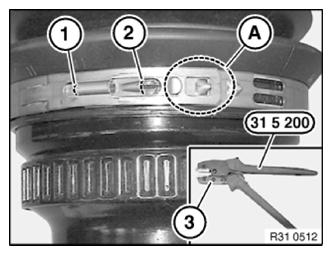

Position Low Profile band clamp in installation position (A) on bellows.

Place special tool 31 5 200 on lugs (1, 2).

NOTE: Make sure that the movable leg (3) of the special tool is placed on lug (1).

G15332086

Courtesy of BMW OF NORTH AMERICA, INC.

Check and if necessary correct positions of bellows and Low Profile band clamp.

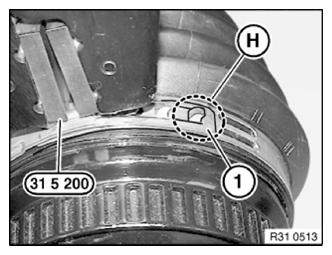

Compress Low Profile band clamp with special tool 31 5 200 and press on end of band clamp (1).

Relieve tension on special tool and remove.

Check hook fastener (H); if necessary, repeat operation with new Low Profile band clamp.

G15332087

Courtesy of BMW OF NORTH AMERICA, INC.

Installation (type B):

Position Low Profile band clamp in installation position on bellows.

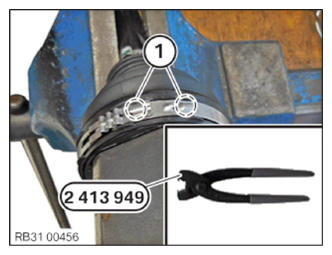

Place special tool 2 413 949 on lugs (1).

G15332088

Courtesy of BMW OF NORTH AMERICA, INC.

Check and if necessary correct positions of bellows and Low Profile band clamp.

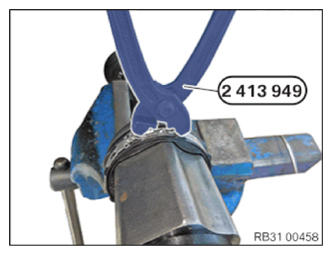

Press Low Profile band clamp together with the special tool 2 413 949 until the hook fastener engages.

Relieve tension on special tool and remove.

Check hook fastener; if necessary, repeat operation with new Low Profile band clamp.
