Installing the anti-roll bar link

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Incorrect assembly is possible. Ensure correct installation position.

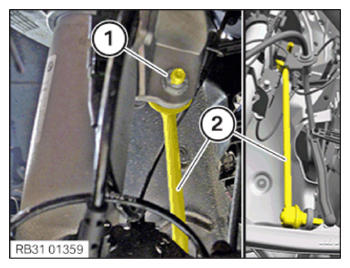

Position the anti-roll bar link (2) on the spring strut and the anti-roll bar.
Replace nut (1).
Parts: Nut

Tighten nut (1). If necessary, counter support at the Torx socket.

TIGHTENING TORQUE SPECIFICATIONS

Front anti-roll bar link to anti-roll bar/spring strut
M10 Replace nut.	Tightening torque	56 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

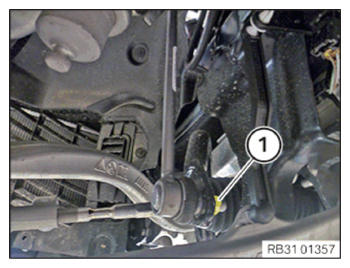

Replace nut (1).
Parts: Nut

Tighten nut (1). If necessary, counter support at the Torx socket.

TIGHTENING TORQUE SPECIFICATIONS

Front anti-roll bar link to anti-roll bar/spring strut
M10 Replace nut.	Tightening torque	56 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
