Replacing the spring strut support bearing
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

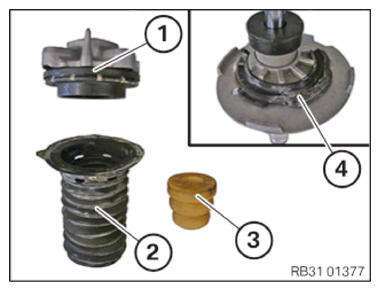

- Replace the spring strut support bearing (1)
.
Parts: Spring strut support bearing
- Check the protective tube (2) , auxiliary damper (3) and the spring pad (4) for damage, replace if necessary.

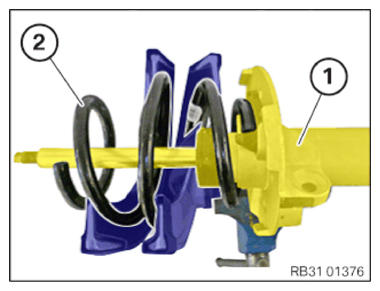

- Position the shock absorber (1) in the tensioned coil spring (2) .

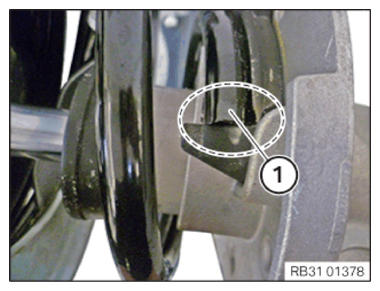

- Align the shock absorber with the spring pad with the lower coil spring end (1) up to the stop.
