Removing the wishbone
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... RAISE THE VEHICLE USING A VEHICLE LIFT .
NOTE:
TECHNICAL INFORMATION
Perform wheel alignment after installation.
Perform wheel alignment after installation.
Preliminary work
- Refer to REMOVING FRONT LEFT OR RIGHT WHEEL .
- Refer to REMOVING THE FRONT SPOILER .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to RELEASING THE ATTACHMENT ROD OF THE RIDE HEIGHT SENSOR FROM THE WISHBONE .
- Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY .
NOTE:
RISK OF DAMAGE
Deflection of the ball joint of the wishbone by more than 25° .
Damage to the bellows and premature wear in the ball joint .
Deflection of the ball joint of the wishbone by more than 25° .
Damage to the bellows and premature wear in the ball joint .
- The wishbone may be inclined by a maximum of 25° during installation or removal!

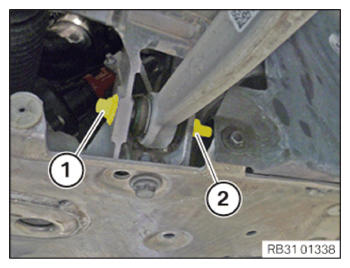

- Loosen screw (1). In doing so, counter support at the nut (2).

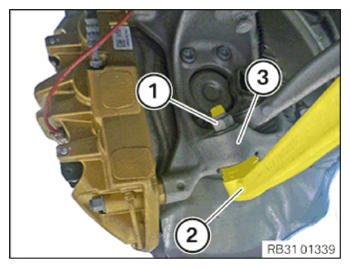

- Release nut (1). If necessary, counter support at the Torx socket.
- Release the wishbone (2) from the swivel bearing (3) and remove.
