Removing all hydraulic valve clearance compensating elements

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

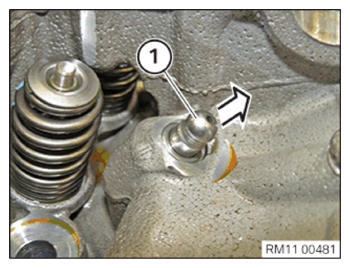

Remove all hydraulic valve clearance compensating elements (1) up and out in the arrow direction.
Lay the hydraulic valve clearance compensating elements (1) , together with the rocker arms, orderly in the special tool 0 495 105 (11 4 480) .

Courtesy of BMW OF NORTH AMERICA, INC.
