Installing all intermediate levers
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
When replacing one or more intermediate levers:
When removing the intermediate lever, it is imperative to note the part number of the intermediate lever.
A mixed installation of intermediate levers is only permitted in combination with the appropriate torsion spring .
For further information on possible combinations, see the applicable BMW parts catalogue.
When replacing one or more intermediate levers:
When removing the intermediate lever, it is imperative to note the part number of the intermediate lever.
A mixed installation of intermediate levers is only permitted in combination with the appropriate torsion spring .
For further information on possible combinations, see the applicable BMW parts catalogue.

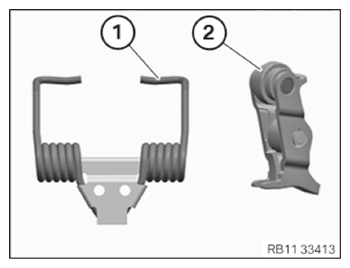

- Version with a torsion spring with an L-shaped contour and a suitable intermediate lever:
Use a torsion spring (1) with L-shaped contour only in connection with the suitable intermediate lever (2) .

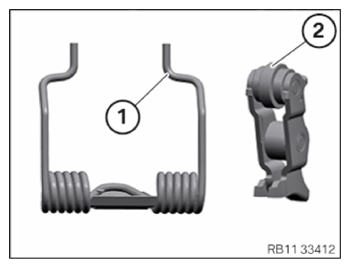

- Version with a torsion spring with an S-shaped contour and a suitable intermediate lever:
Use a torsion spring (1) with the s-shaped contour only in connection with the suitable intermediate lever (2) .
NOTE:
The description is provided only at one component. The procedure is the same for all other components.

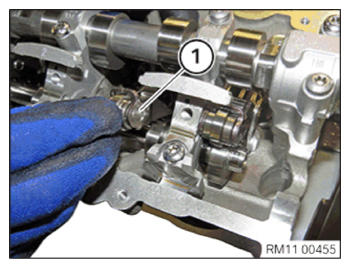

- Install the intermediate lever (1) .
