Installing all hydraulic valve clearance compensating elements

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: TECHNICAL INFORMATION
If the hydraulic valve clearance compensating elements are reused, they must be reinstalled at the same position.

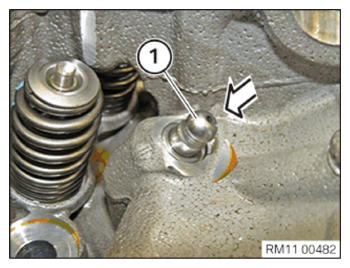

G15329517Courtesy of BMW OF NORTH AMERICA, INC.
