Installing all gates

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

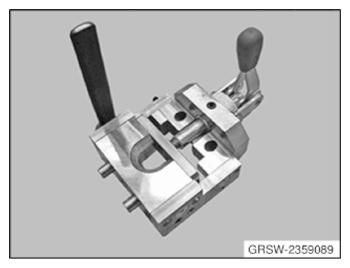

Have the special tool 2 359 089 ready.

Courtesy of BMW OF NORTH AMERICA, INC.

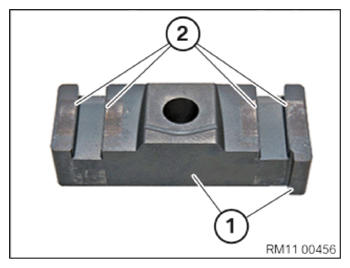

Clean contact surfaces (1) and (2) off oil, grease and dirt.

Courtesy of BMW OF NORTH AMERICA, INC.

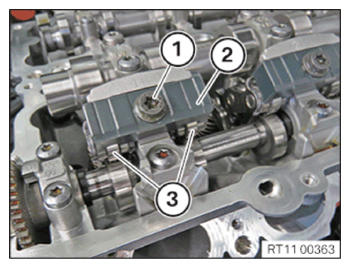

Fit the gate (2) and hand-tighten the screw (1).
Make sure the intermediate lever (3) is in the correct installation position.

Courtesy of BMW OF NORTH AMERICA, INC.

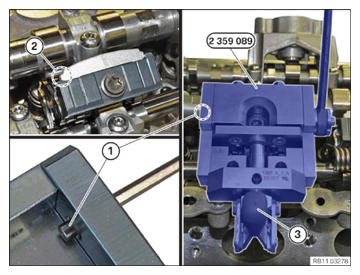

Position the special tool 2 359 089 on the cylinder head.
Pre-tension the gate with the lever (3).
Bring the screw (1) onto the contact surface in the area (2).
Make sure that the special tool 2 359 089 does not rotate during this process.

Courtesy of BMW OF NORTH AMERICA, INC.

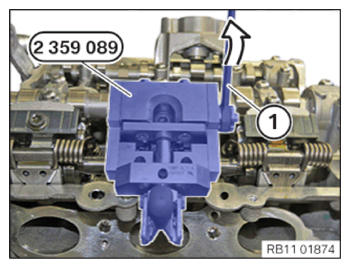

Attach the gate with the lever (1) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

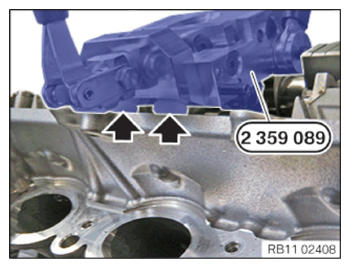

Make sure that the special tool 2 359 089 rests flat against the cylinder head (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

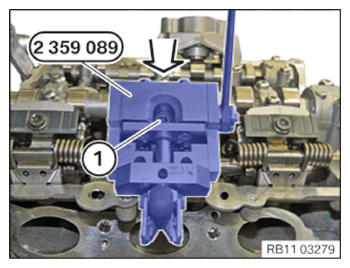

Press the special tool 2 359 089 in arrow direction onto the cylinder head. Simultaneously tighten the screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Gate to bearing bracket
M7 tightening torque	Tightening Torque	20 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

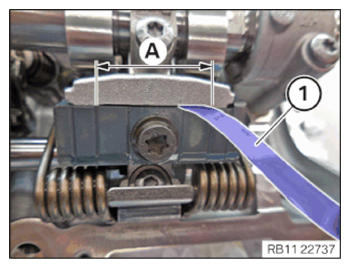

Check the conventional gauge (1) in the area (A) for the correct gap dimension.

TECHNICAL DATA SPECIFICATION

Gap dimension between gate and bearing bracket
Gap dimension A	Tightening Torque	0.03 mm

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure that the gate (1) lies correctly on the bearing bracket (2).

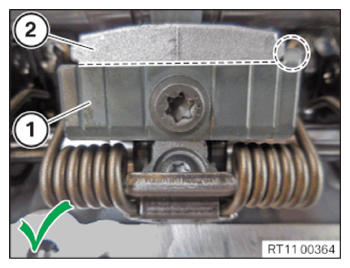

The gate (1) is installed correctly in the marked area.

Courtesy of BMW OF NORTH AMERICA, INC.
Make sure that the gate (1) lies correctly on the bearing bracket (2).

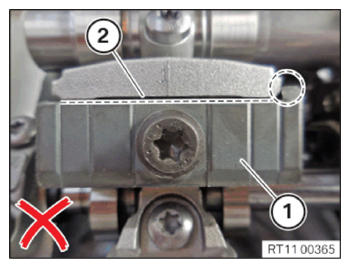

The gate (1) is not installed correctly in the marked area.

Courtesy of BMW OF NORTH AMERICA, INC.
Repeat the process for all gates.
