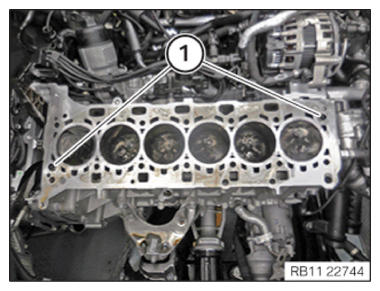

Check the fitting sleeves (1)
for damage, replace if necessary.
Courtesy of BMW OF NORTH AMERICA, INC.
Replace cylinder head gasket (1)
.
Parts:
Cylinder head gasket

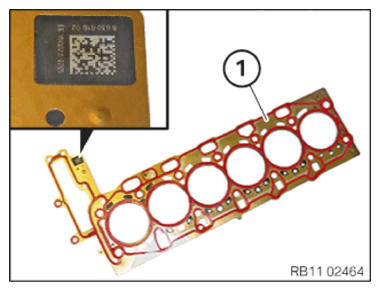

Check cylinder head gasket (1)
using the part number.
Courtesy of BMW OF NORTH AMERICA, INC.

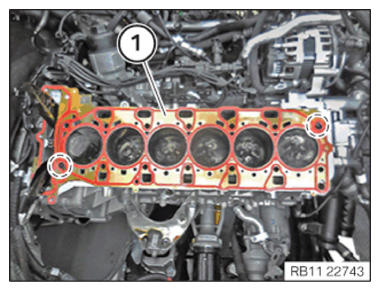

Guide in and install cylinder head gasket (1)
in the marked
area.
