Terminal control, Parking-Residing-Driving

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Terminal control, Parking-Residing-Driving (PWF)

The logical terminal control differs from previous vehicles. From the point of view of the customer, the vehicle is always in the correct condition. The logical terminals are controlled via a customer-oriented management of the vehicle condition.

Motivation:

Only functions that are activated or required need energy.

In the 'Residing' state, all customer functions should be available directly without first pressing the START-STOPPING button to (exception: purely driving functions). The activation and deactivation takes place directly on the corresponding operating element.

This terminal control means: Parking-Residing-Driving

Park (rest state)

Residing (operating readiness)

Driving (driving readiness)

The vehicle condition is changed due to the customer's behavior.

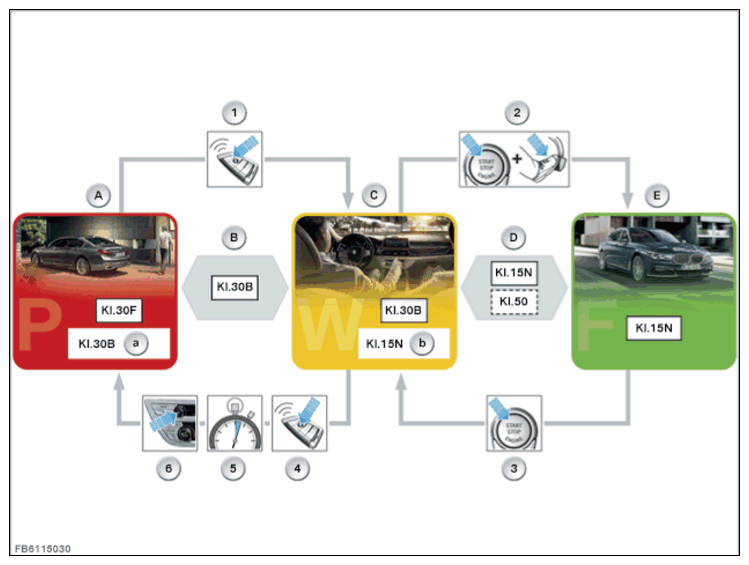

G15382221Courtesy of BMW OF NORTH AMERICA, INC.
Index Explanation
A Vehicle condition: Park (rest state)
B Transition condition, stationary functions
C Vehicle condition: Residing (operating readiness)
D Transition condition establish driving readiness, end driving readiness, or testing-analysis-diagnosis (PAD)
E Vehicle condition: Driving (driving readiness)
1 Unlocking the vehicle
2 Press the start/stop button and brake pedal
3 Press the start/stop button
4 Locking the vehicle.
5 No user activity observable for 10 minutes
6 Press and hold
a Terminal 30B: During the transition from "Residing" to "Park", a run-on of 3 minutes Starts
b Terminal 15N: During the transition from "Driving" to "Residing", a run-on of 5 seconds starts.

Testing-analysis-diagnosis (PAD)

The PAD mode is the vehicle condition between "Residing" and "Driving". The PAD mode corresponds to the physical "terminal 15 on".

In the PAD mode, all the control units as well as all physical terminals are on. The PAD mode is activated as follows:

NOTE: During the vehicle diagnosis, a vehicle with parking-residing-driving is automatically switched to PAD mode. This is also displayed in the ISTA at the top right. This ensures that a diagnosis can be performed with all control units.

Assignment of the lighting functions to the PWF status

The following overview shows how the lighting functions are assigned to the PWF status parking-residing-driving.

Lighting function PWF status
Park  Residing  Driving
Headlamp flasher X X X
High beam - X X
Fog lamps - X X
Parking light X X -
Turn signal light - X X
Hazard warning flashers X X X
Brake light - X X
Brake light in the event of danger - - X
Rear fog light - X X
Backup lamp - - X
Welcome light (front and rear) X X -
Outside door handle light, light carpet X X X
Headlight courtesy delay feature X X -
Blink anti-theft alarm system X - -
Blink, panic mode X X X

Display of the PWF status in the instrument cluster

The status in parking-residing-driving (PWF status) can be seen on the tachometer in the instrument cluster.

Revolution counter PWF status
G15018515Courtesy of BMW OF NORTH AMERICA, INC.
Park (rest state)
(with time delay if necessary)
G15018516Courtesy of BMW OF NORTH AMERICA, INC.
Residing (operating readiness)
G15018517Courtesy of BMW OF NORTH AMERICA, INC.
Driving (driving readiness)
or
Testing-analysis-diagnosis (PAD mode)
(Example: hybrid vehicle)

Selective partial network operation

Today's vehicles contain up to 70 control units that are networked with one another. Depending on the current vehicle condition or the user's wishes, not all of the comfort systems and assistance systems are always required.

Targeted switching off and turning on of unnecessary control units, the so-called selective partial network operation, can save energy, relieve the load on the battery and thereby increase the stationary period.

For vehicles with a combustion engine, the electrical energy consumption is indirectly coupled to the gas mileage through the alternator. Here, a selective deactivation of control units that are not required can contribute to a reduction in fuel consumption and CO2 emissions.

The master for selective subnetwork operation is the Body Domain Controller (BDC) or the Basic Central Platform (BCP). The control units that are not required are turned off via a corresponding bus signal.

Other transmitter and receiver units are used to implement partial network operation for control units.

The transmitter and receiver units are able to evaluate and interpret messages. As long as there is any bus communication and there is no valid wake-up signal for the corresponding control unit, this control unit remains switched off. If a valid wake-up signal for the corresponding control unit is sent on the bus, the transmitter and receiver unit can activate the voltage regulator of the microcontroller and the control unit starts up. The control unit is switched off by deactivating the voltage regulator.

NOTE: The individual sub-networks can be activated and deactivated using diagnostic orders.
All partial networks are active in PAD mode.

General notes

NOTE: There are still physical terminals for the power supply:

Diagnosis instructions

NOTE: During the vehicle diagnosis, a vehicle with parking-residing-driving is automatically switched to PAD mode. This is also displayed in the ISTA at the top right. This ensures that a diagnosis can be performed with all control units.
