Tensioning the coil spring

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Clean coil spring to remove heavy contamination.

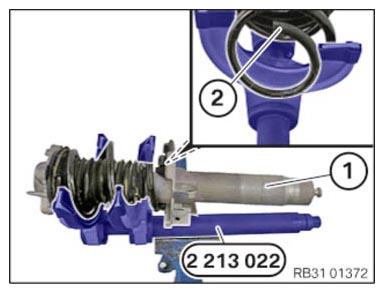

Attach the spring strut (1) to the coil spring with the special tool 2 213 022 (31 3 340). Align the lower coil spring end (2) vertically in an upwards direction.
Make sure that the coils of the coil spring lie completely in the recesses of the pressure plates.

Courtesy of BMW OF NORTH AMERICA, INC.

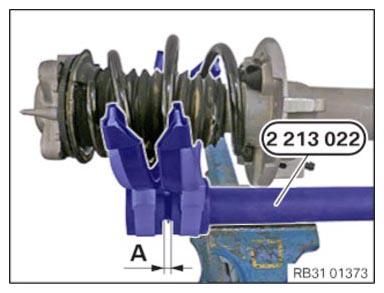

Tension the coil spring until the dimension (A) is reached at the special tool 2 213 022 (31 3 340).
Dimension (A) = 5 mm

Dimension (A) must not fall short.

Courtesy of BMW OF NORTH AMERICA, INC.
