Removing the actuator from the hood hinge on the right

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Pyrotechnic components.
Danger! Immobilization period-threatening injuries!

All work on pyrotechnic parts may be carried out by technically experienced and I appropriately trained personnel only.
Replace any damaged part or ones that have been dropped.
For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

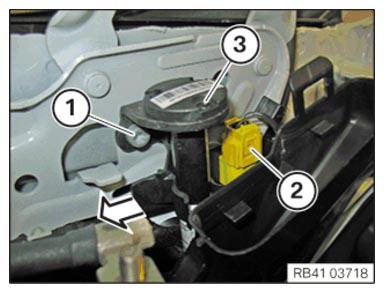

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Loosen screw (1) .
Unlock plug connection (2) and disconnect.
Pull the actuator (3) slightly forwards in the arrow direction and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
