Removing left and right gutter strip of the windshield

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Removing the water collection strip on the windshield

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.

Protect working area.
Handle tools and components carefully.

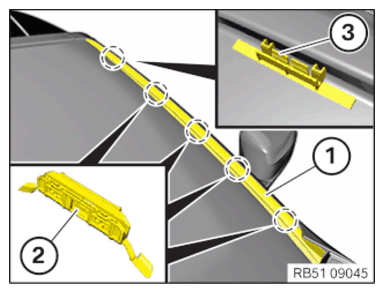

Unclip the gutter strip (1) in the center beginning from the top out of the clamps (2) and (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

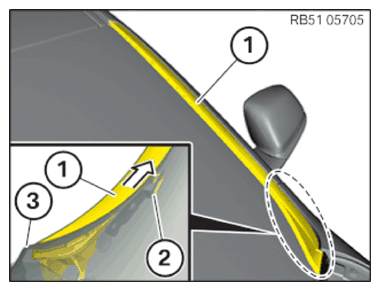

Pull out the gutter strip (1) in the arrow direction from the guide (2) and carefully feed it out at the side panel (3) .

NOTE: Description is for left component only. Procedure on the right side is identical.

Removing the water collection strip on the windshield

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.

Protect working area.
Handle tools and components carefully.

Unclip the gutter strip on the windshield (1) upwards from the clamps (2) starting at the roof.

Courtesy of BMW OF NORTH AMERICA, INC.
Pull the gutter strip on the windshield (1) out of the guide (2) in the arrow direction and carefully guide it out at the side panel (3) .

Courtesy of BMW OF NORTH AMERICA, INC.
