Remove top coolant pipe

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

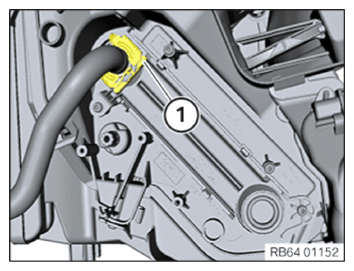

Disassemble the retaining clip (1) as described in the next step.

Courtesy of BMW OF NORTH AMERICA, INC.

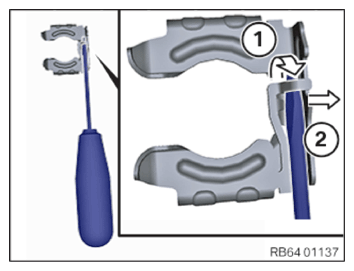

Unlock the retaining clip upwards (1) using a suitable screwdriver.
Move the retaining clip to the side (2) with a suitable screwdriver.
Set the coolant pipe aside.

Courtesy of BMW OF NORTH AMERICA, INC.
