Remove the backrest covering with the cushion (M CFRP bucket seat)

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.

Protect working area.
Handle tools and components carefully.

NOTE: Perform the steps on the left and right side.

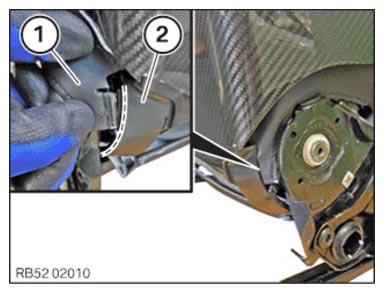

Carefully unclip the backrest covering (1) in the marked area from the backrest frame (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

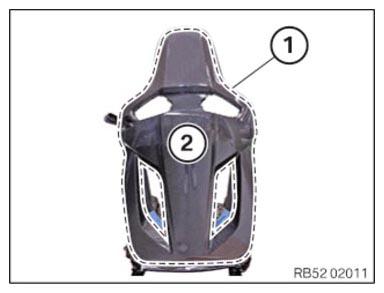

Carefully unclip the backrest covering (1) in the marked area from the backrest frame (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

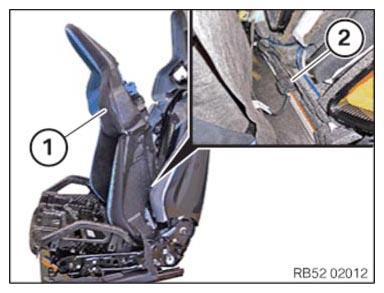

Position the backrest covering (1) as depicted.
Unlock plug connection (2) and disconnect.
Remove the backrest covering with the cushion (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
