Remove swivel bearing
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

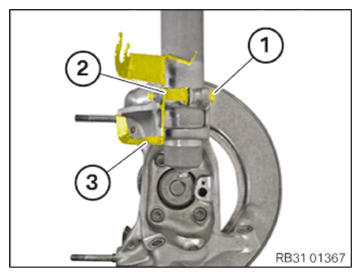

- Release the screw (1)
, counter support at the nut (2)
while doing so.
- Remove the holder (3)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Spread the swivel bearing (1) with the special tool 0 494 541 (31 2 230) and detach in arrow direction fr
om the shock absorber (2)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
