Remove sound insulation
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

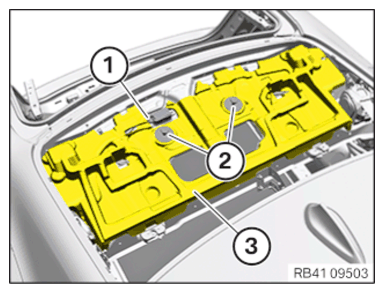

To provide a better overview: Schematic diagram with partially hidden components.
- Unlock plug connection (1)
and disconnect.
- Pull out mounting dome (2)
and remove sound insulation (3)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
