Remove left and right luggage compartment wheel arch trim panels
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Luggage compartment wheel arch trim panel

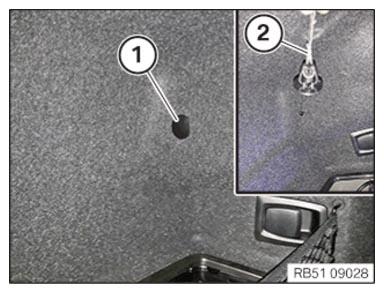

- Unclip convertible top compartment lid for emergency release (1) from the luggage compartment wheel arch trim panel.
- Detach the cable (2).

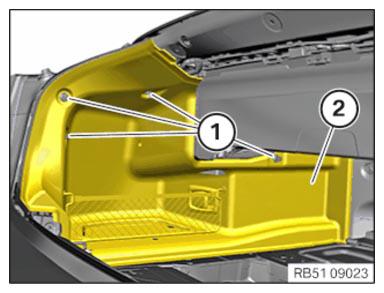

- Loosen the expanding rivet (1).
- Feed out the luggage compartment wheel arch trim panel (2) towards the inner side.

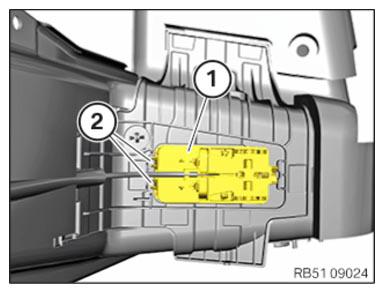

- Release the lever for backrest release (1) on the latch mechanisms (2) and feed out from the luggage compartment wheel arch trim panel.
- Remove luggage compartment wheel arch panel.
Remove right luggage compartment wheel arch trim panel.

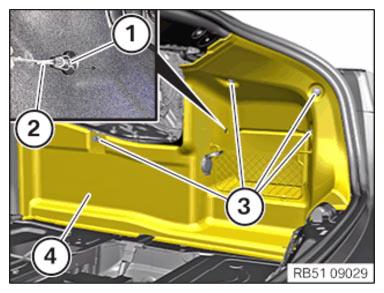

- Unclip the emergency unlocking (1) of the convertible top compartment lid from the luggage compartment wheel arch trim panel (4).
- Detach the cable (2).
- Release the expanding rivet (3).
- Feed out the luggage compartment wheel arch trim panel (4) towards the inner side.
- If necessary, unlock and disconnect the existing plug connection and remove the luggage compartment wheel arch trim panel (4).
