Release the left and right external radiator

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Removing the external radiator

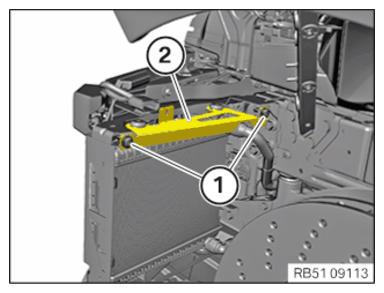

Loosen screws (1) .
Remove the holder (2) .
Remove the radiator diagonally upwards to the rear from the rubber mounts and tie up.

Courtesy of BMW OF NORTH AMERICA, INC.
