Release the control unit holder
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

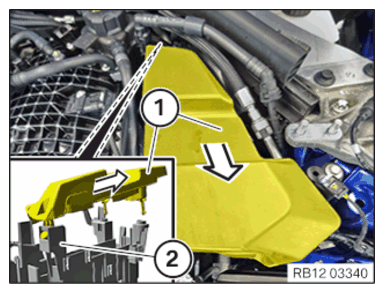

- Release the cover (1)
in the marked areas in the arrow direction from the holder (2)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Feed out the cover (1)
in arrow direction from the holder (2)
and remove it.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Loosen screws (1)
.
- Remove the control unit bracket with the control units (2)
and set aside.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
