Products for the repair of aluminum

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Products for the repair of aluminum

Product recommendation

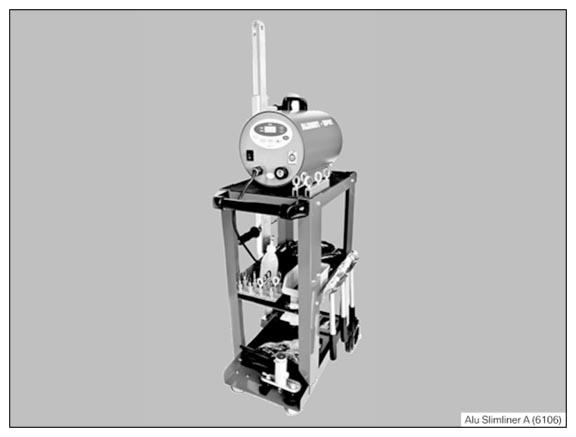

Alu Slimliner A (6106) with trolley

G15381846Courtesy of BMW OF NORTH AMERICA, INC.

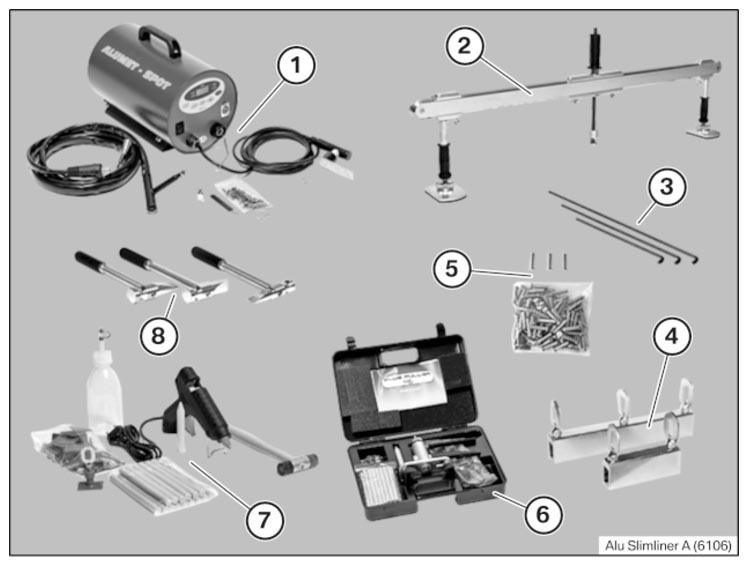

Scope of delivery "Alu Slimliner A (6106)" system:

G15381847Courtesy of BMW OF NORTH AMERICA, INC.

Several exemplary applications of body damage, which can be repaired with the "Alu Slimliner A (6106)" system will follow.

G15018274Courtesy of BMW OF NORTH AMERICA, INC.

Several exemplary applications of the "Alu Slimliner A (6106)" system will follow.

G15018275Courtesy of BMW OF NORTH AMERICA, INC.

After the removal of the paintwork in the area of the damage, the pulling pins are welded to the aluminum outer skin with the electrode. With the help of the "pulling bridge", the damage is reshaped with a constant tug. This method results in a complete reshaping.
