Partially installing the rear headlining (lowered)

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

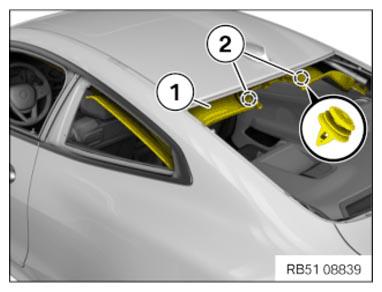

Check the clips (2) on the headlining (1) for damage and replace if necessary.
Correctly position the headlining (1) and feed it into the respective edge protection.
Clip in headlining (1) with the clips (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the left and right side.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

NOTE: Schematic diagram is for example purposes.
Some parts may differ in certain details.

Courtesy of BMW OF NORTH AMERICA, INC.

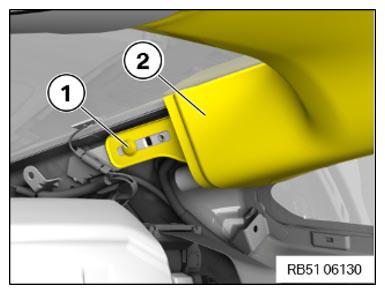

Fasten the expanding rivet (1) on the headlining (2) .
