Partially installing the Install luggage compartment wheel arch trim panel on right
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

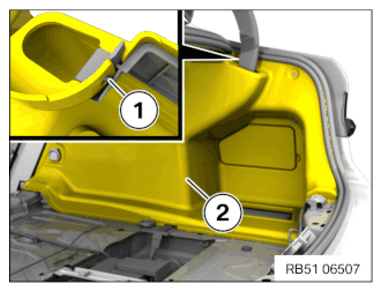

- Feed in the luggage compartment wheel arch trim panel (2) in the rear area below the sealing lip of the tailgate seal.
- Feed in the lug of the luggage compartment wheel arch trim panel (2)
on the outer side of the hinge in the lock on the trim (1)
.

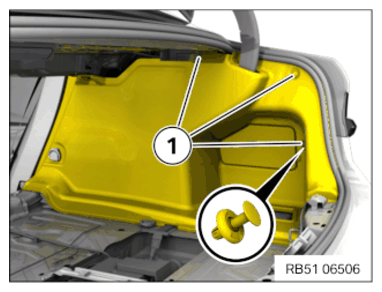

- Secure expanding rivet (1)
.
Installing the emergency release handle for the tailgate (additional work for US version)
NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details. - Attach the Bowden cable (2) .
- Fasten the emergency release handle (1)
for the tailgate to the holder.
