Installing the speaker cover on the side trim panel
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
- Replace the speaker cover.
Parts:
Speaker cover

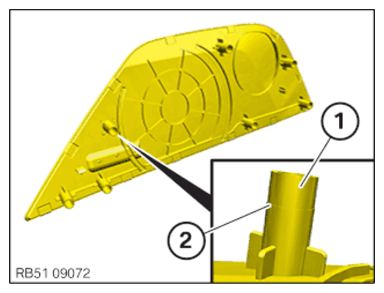

- Cut all the welding pins (1) on marks (2)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

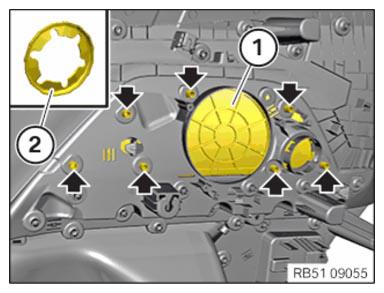

- Install the speaker cover (1).
- Secure all welding pins (arrows) using the lock washers (2)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Replace the speaker cover.
Parts:
Speaker cover
- Cut all the welding pins (1) on marks (2)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

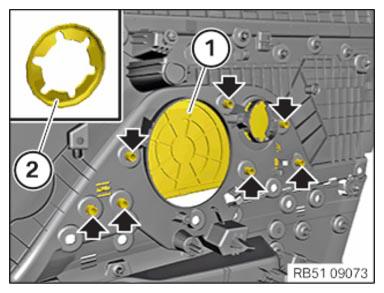

- Install the speaker cover (1).
- Secure all welding pins (arrows) using the lock washers (2)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
