Installing the left and right tail lights on the tailgate
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install the tail light on the trunk lid
- If necessary, insert convertible top brace (1) into the tailgate from the outside and position it with guides (2).
Check

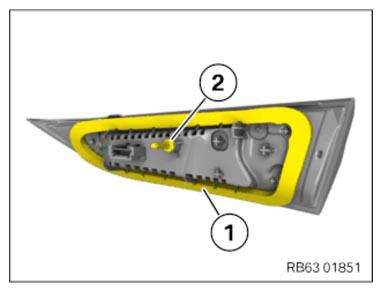

- Check seal (1) and threaded bolt (2) of the tail light for damage.
Result
» Seal (1) is damaged.
Measure
- Replace gasket.
Result
» Threaded bolt (2) is damaged.
Measure
- Replace tail light.
- Insert and position tail light (4) in the tailgate. Guide tail light (4) under the sealing lip of trim (5) and into clamping claw (3).
- Tighten nut (2) with clamping claw (3).TIGHTENING TORQUE SPECIFICATIONS
Tail light at trunk lid Clamping claw tightening torque 2.6 Nm - Connect connectors (1) and lock.
