Installing the left and right sun visors and counter support

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Install the sun visor and the counter support

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

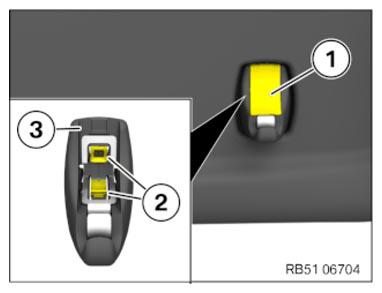

Check the guides (1) at the cover of the counter support for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
Clip the counter support (3) into the headlining.
Make sure the clamps (2) are engaged correctly.
Clip in the cover (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Connect and lock corresponding connectors.
Install the sun visor.

Tighten down screw (2) .

TIGHTENING TORQUE SPECIFICATIONS

Sun visor to body
Screw	tightening torque	3.3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Close the cover (1) .
Attach the sun visor (1) on the counter support (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
