Installing the left and right air duct
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.

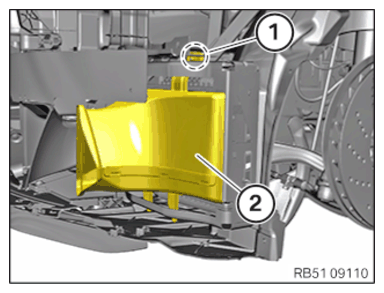

Install air duct
- Feed in the air duct (2)
and position correctly.
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Air duct to bracket |
| Hexagon screw |
Tightening torque |
2.5 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
