Installing the gas pressure spring for tailgate

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Shutting hood or trunk lid.
Injury hazard!

Support hood/trunk lid in fully open position with the aid of a suitable device.

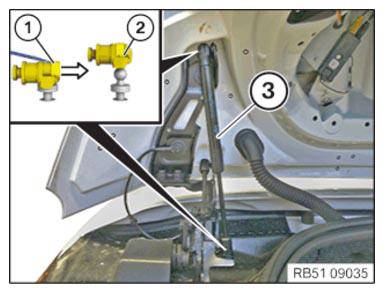

Install the gas pressure spring (3) and fit it with the ball socket (2) on the ball hub and engage it with force.
Check the clamp (1) is fitted correctly.

Courtesy of BMW OF NORTH AMERICA, INC.
