Installing the brake light

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Penetration of moisture through sealing residues of the 3rd brake light.
Moisture damage in the luggage compartment.

Completely remove sealing residues of the 3rd brake light on the tailgate.

NOTE: TECHNICAL INFORMATION
The 3rd brake light is fitted with a double-sided adhesive seal and must therefore be replaced.

3. Brake light must be replaced.
Part: 3. Brake lamp

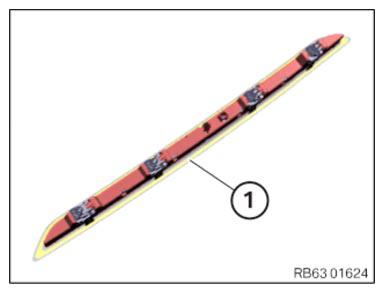

Remove protective film from seal (1).

Courtesy of BMW OF NORTH AMERICA, INC.

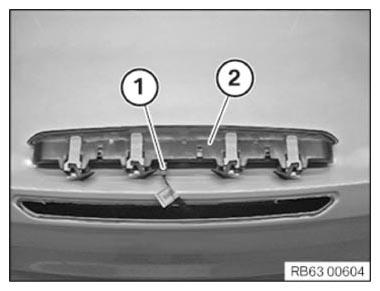

Connect the plug (1) with the 3rd brake light (2).

Courtesy of BMW OF NORTH AMERICA, INC.

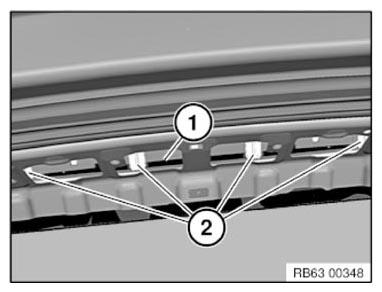

Position the brake light (1) on the tailgate.
Lock the locks (2).

Courtesy of BMW OF NORTH AMERICA, INC.
