Installing the actuator on the right hood hinge

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

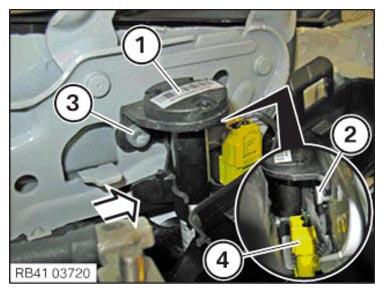

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Feed in the actuator (1) at the guide pin (2) and slide to the back in arrow direction up to the stop.
Replace the screw (3) .
Parts: Screw

Tighten down screw (3) .

TIGHTENING TORQUE SPECIFICATIONS

Actuator to engine compartment lid hinge
M6x12 Replace screw.	Tightening torque	8 Nm

Connect connectors (4) and lock.
