Installing left and right gutter strip on the windshield

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing gutter strip on the windshield

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components. Scratches, surface damage.

Protect working area.
Handle tools and components carefully.

NOTE: TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.

Replace the gutter strip (1) and paint if necessary.
Parts: Gutter strip
Feed in the gutter strip (1) at the side panel (3) carefully and insert it into the guide (2) in the arrow direction at the same time.

Courtesy of BMW OF NORTH AMERICA, INC.

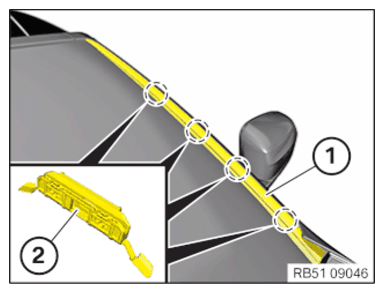

Clip in the gutter strip (1) beginning from below at the clamps (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

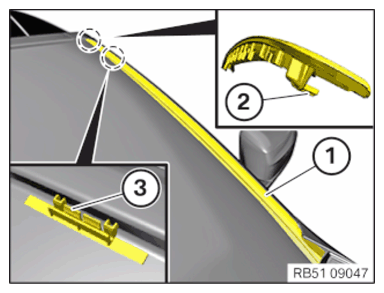

Feed in the gutter strip (1) at the top under the windshield with the retaining lug (2) and clip in at the clamp (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing gutter strip on the windshield

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.

Protect working area.
Handle tools and components carefully.

NOTE: TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.

Replace gutter strip on the windshield (1) . Paint if necessary.
Parts : Gutter strip
Feed in the gutter strip on the windshield (1) carefully at the side panel (3) and insert it into the guide (2) in the arrow direction at the same time.

Courtesy of BMW OF NORTH AMERICA, INC.
Clip the gutter strip on the windshield (1) into the clamps (2) , starting at the bottom.

Courtesy of BMW OF NORTH AMERICA, INC.
