Installing fog light support
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

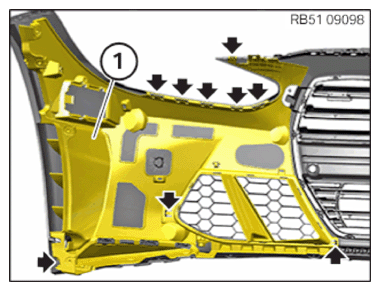

- Install fog light bracket (1) and engage it into detents (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

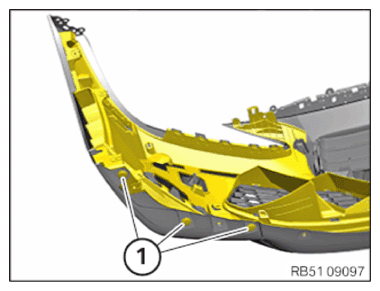

- Mount the expanding rivets (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

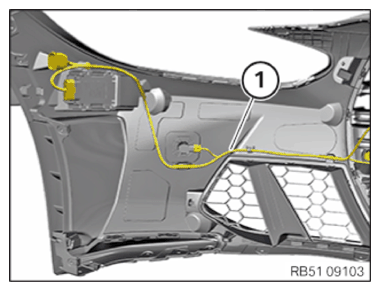

- Secure wiring harness (1) into all the clips.
- Connect all connectors and lock.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
