Install the kinematics at the bottom left

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Insert and position the kinematics (2) .

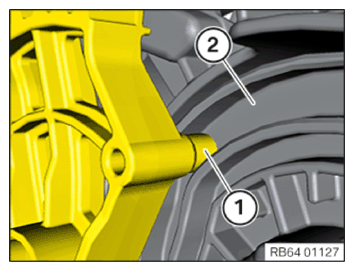

Ensure that the guide pin (1) is correctly positioned in the guide of the link disk (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

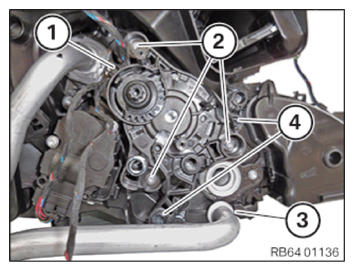

Position the kinematics.

Tighten down screws (2) .

TIGHTENING TORQUE SPECIFICATIONS

Heater/air conditioner
Screw	Tightening torque	1.2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Engage the deflection lever (4) .
Ensure that the deflection levers (4) audibly engage.
Position the coolant pipe (3) .
Attach the cable in the wire guide (1) .
