Install lock for rear seat backrest

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

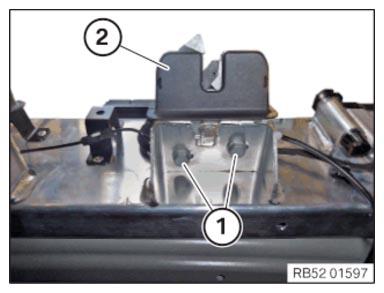

Position lock for the backrest covering (2) correctly.
NOTE: Carefully open up backrest cover for adaptation of the lock of the backrest covering, so that the correction installation position can be determined.

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Lock for rear seat backrest to vehicle body
Screw	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

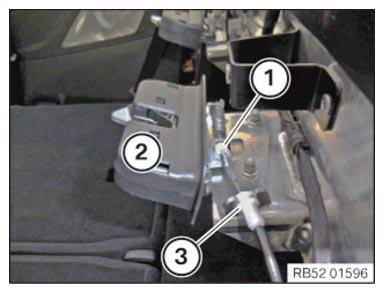

Position Bowden cable (1) correctly in the lock for the backrest covering (2) and mount it carefully.
Correctly position and clip in the Bowden cable bracket (3).

Courtesy of BMW OF NORTH AMERICA, INC.
