Install A-pillar trim panel, left and right

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Install A-pillar trim panel

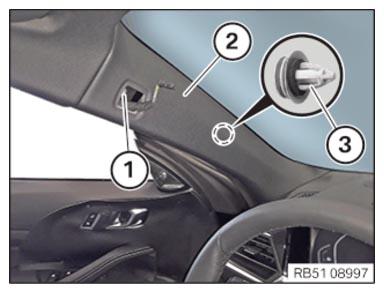

Install A-pillar trim panel (2) and clip It Into clip (3) .

Tighten down screw (1) .

TIGHTENING TORQUE SPECIFICATIONS

A-pillar trim panel to body
Sheet metal screw 4.8x38	Tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Install microphone

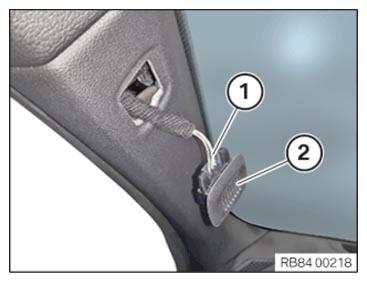

Connect the connector (1) to the hands-free microphone (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

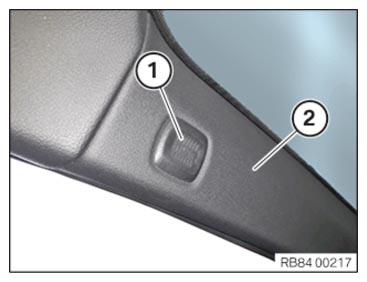

Position the hands-free microphone (1) on the A-pillar trim panel (2) and clip it in.

Courtesy of BMW OF NORTH AMERICA, INC.
