Dismantling exterior mirrors
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .
Removing the cover from the mirror base

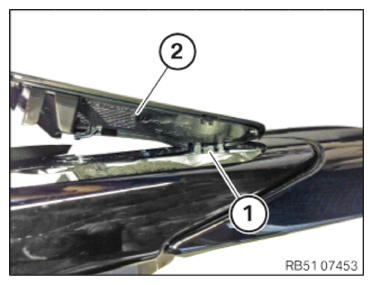

- Release the cover (1) at the arrow starting at the detents along the dotted lines and slightly lift.
- Carefully release the snap-in lug (1) upwards with a small screwdriver and remove the cover (2).
- Unlock plug connection (1) and disconnect.
- Detach the wiring harness (2) from the holders.
- Remove sound insulation (1).
- Pull out connector housing (2).
- Unpin connector (3) from the connector housing (2).
The number of connectors (3) varies depending on the equipment version.
- Carefully feed out cables (1) individually.
The pins on the cables (1) must not be damaged.
The number of cables (1) varies depending on equipment version.
- Pull out the foam insert (1) and the cable (2) from the mirror.
