Disconnecting all battery ground leads

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work

Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .

Precondition

Ignition is switched off.

WARNING: Deactivate the 12-V electrical system.
Risk of short circuits! Risk of fire!

Make sure that there is no battery charger connected to the jump start terminal in the engine compartment.
For vehicles with additional electrical systems (48 V electrical system, high-voltage vehicle electrical system), this absolutely must be deactivated before the vehicle battery is disconnected.

NOTE: TECHNICAL INFORMATION
Follow notes on lithium ion battery. See NOTES ON THE LITHIUM ION BATTERY .

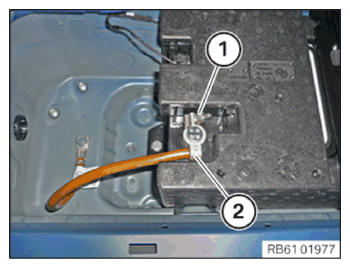

Slacken nut (1).
Detach the negative battery cable (2) upwards.
Lay the negative battery cable (2) on the side and fasten it.

Courtesy of BMW OF NORTH AMERICA, INC.
