Check the gap dimension of the hood
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: BODY DIMENSIONS .
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: BODY DIMENSIONS .
Check

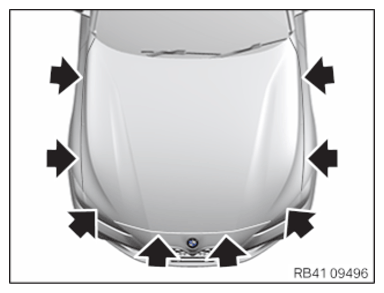

- Check the gap dimensions between the hood and the adjoining components.TECHNICAL DATA SPECIFICATION
Gap dimension hood to side panel 1 hood; 2 side panel a 3.3 +1-1 mm b 0.5 +1.6-1.6 mm TECHNICAL DATA SPECIFICATIONGap dimension hood to headhight 1 hood; 2 headlight a 5.3+1.8-1.8 mm TECHNICAL DATA SPECIFICATIONGap dimension from hood to bumper cover 1 hood; 2 bumper cover a 3.5 +1.2-1.2 mm b 1.0 +1.5-1.5 mm Desired state
- Gap dimension does not correspond to the secondary document BODY GAP DIMENSIONS (G82) , or BODY GAP DIMENSIONS (G83) .
Result
» Gap dimension does not correspond to the secondary document BODY GAP DIMENSIONS (G82) , or BODY GAP DIMENSIONS (G83) .
Measure
- Adjusting hood.
