Attach the control unit holder

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Make sure that the control unit bracket (1) is inserted below correctly into the mount (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Correctly position the control unit bracket together with the control units (2) .

Tighten down screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Control unit bracket at the shock tower
Hexagon screw	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

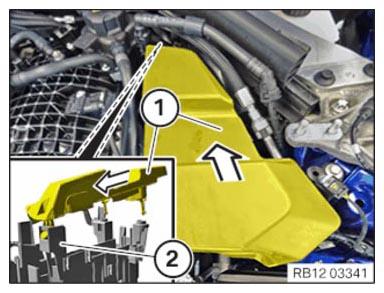

Feed in the cover (1) in arrow direction into the holder (2) and install it.

Courtesy of BMW OF NORTH AMERICA, INC.

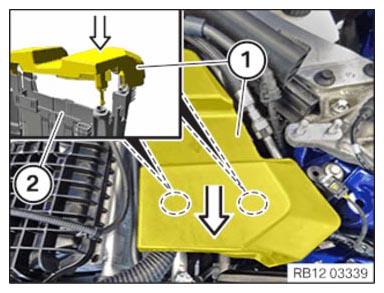

Feed in the cover (1) in arrow direction in the marked areas into the holder (2) and lock it in place.

Courtesy of BMW OF NORTH AMERICA, INC.
