Assemble outside rearview mirror

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.

Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
Read and comply with user information on using the associated special tool 12 7 060.
Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

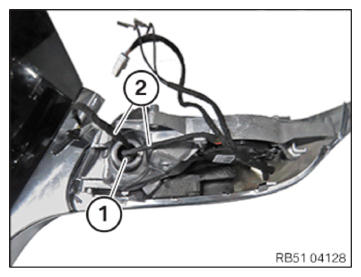

Feed in the cable (2) into the mirror.
The pins on the cables (2) must not be damaged.

The number of cables (2) varies depending on the equipment.
Use foam inserts (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

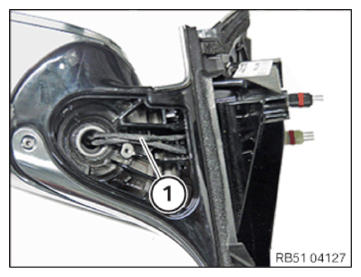

Feed in cable (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Install pin connector (3) in the connector housing (2) .
Use connector housing (2) .

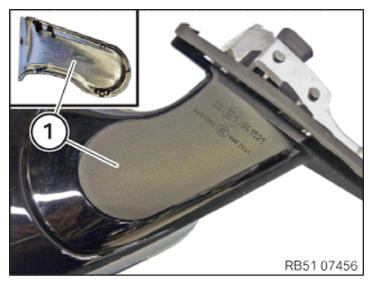

Use sound insulation (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Attach the wiring harness (2) to the holders and place correctly.
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the cover on the mirror base
Check the detents on the cover (1) for damage, if necessary replace the cover (1) .
Correctly position and engage the cover (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
