Adjust the striker on the hood

Check

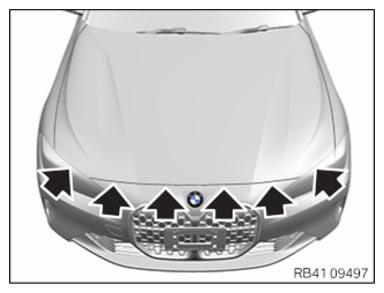

• Check the gap dimensions between the hood and the adjoining components.

  Courtesy of BMW OF NORTH AMERICA, INC.

  TECHNICAL DATA SPECIFICATION



  Gap dimension from hood to bumper cover
  1 hood; 2 bumper cover	a	3.5 +1.2-1.2 mm
  Courtesy of BMW OF NORTH AMERICA, INC.	b	1.0 +1.5-1.5 mm

  TECHNICAL DATA SPECIFICATION



  Gap dimension hood to headlight
  1 hood; 2 headlight Courtesy of BMW OF NORTH AMERICA, INC.	a	5.3 +1.8-1.8 mm

  TECHNICAL DATA SPECIFICATION



  Gap dimension hood to side panel
  1 hood; 2 side panel	a	3.3 +1-1 mm
  Courtesy of BMW OF NORTH AMERICA, INC.	b	0.5 +1.6-1.6 mm

  Result

  » Gap dimensions do not correspond to the specifications.

  Measure

  • Adjust the striker.

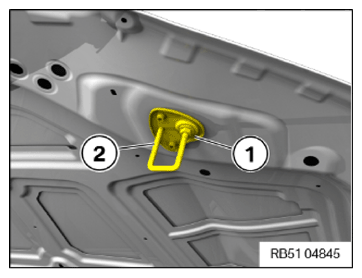

• Adjust striker (2) by turning nut (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Adjusting hood stop pads

  NOTE: Perform the steps on the left and right side.
• Screw in stop pads (1) fully until the pin (2) can be pulled out.

  Pull pin (2) out approx. 5 mm.

• Slowly close the hood. The pin (2) will be pressed into stop pad (1) while doing so.
• Raise hood.
• Unscrew stop pad (1) until stop pad is flush with upper edge of pin (2).

  Courtesy of BMW OF NORTH AMERICA, INC.
