"Spider" dismantling system for bonded glazing
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
"Spider" dismantling system for bonded glazing
Order number: 81 43 2 357 248

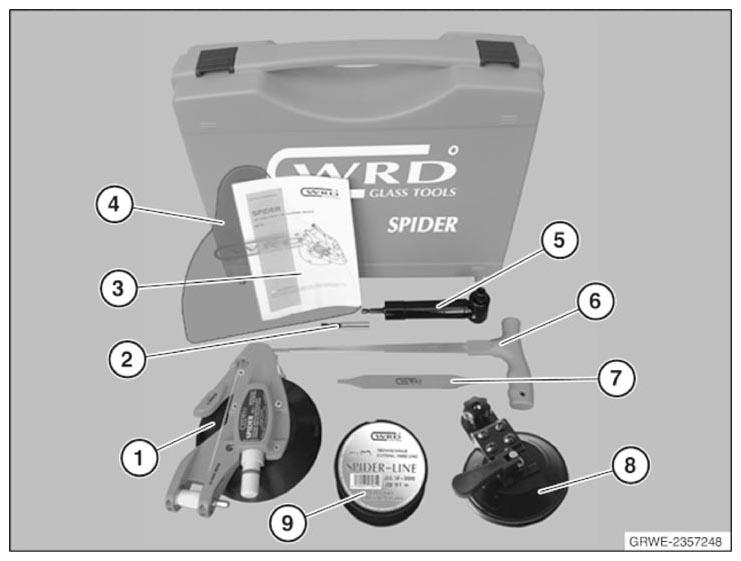

Scope of delivery:
- "Spider" separation device
- Bit holder
- Owner's Manual
- Dashboard protection
- Angular transmission
- Line threader
- Line routing tool
- Suction anchor
- Line for separating adhesions
NOTE:
The cord for separating adhesions
and cord routing tool can be ordered individually as spare parts.
| Order number | Spare part designation |
|---|---|
| 81 43 2 344 272 | Cord for separating adhesions |
| 81 43 2 357 312 | Line routing tool |
TECHNICAL DATA SPECIFICATION
| "Spider" separation device | |
| Dimensions L xW x H | 210x 155x54 mm |
| Suction blade Ø | 150 mm |
| Suction blade load capacity | approx. 62 kg |
| Suction anchor | |
| Dimensions L xW x H | 156 x 115 x 54 mm |
| Suction blade Ø | 115 mm |
| Suction blade load capacity | 47 kg |
| Angular transmission | |
| Dimensions L xW x H | 170x60x25 mm |
| Gear ratio | 1.285 |
| Direction of rotation | left and right |
| Torque | maximum 60 Nm |
| Primary side connection external hex | 6.3 mm |
| Secondary side connection hexagon socket magnetic | 6.3 mm |
| Bit holder | |
| Dimension L | 60 mm |
| Line to separate bonding | |
| Line length per coil | 91 m |
| Line Ø | 0.8 mm |
| Line routing tool | |
| Dimensions L xW x H | 180 x 17 x 5 mm |
| Line threader | |
| Dimension L | 340 mm |
| Dashboard protection | |
| Dimensions L xW x H | 240 x 230 x 1.25 mm |
Application:
See repair instructions REMOVING WINDOWS WITH A "SPIDER" .
